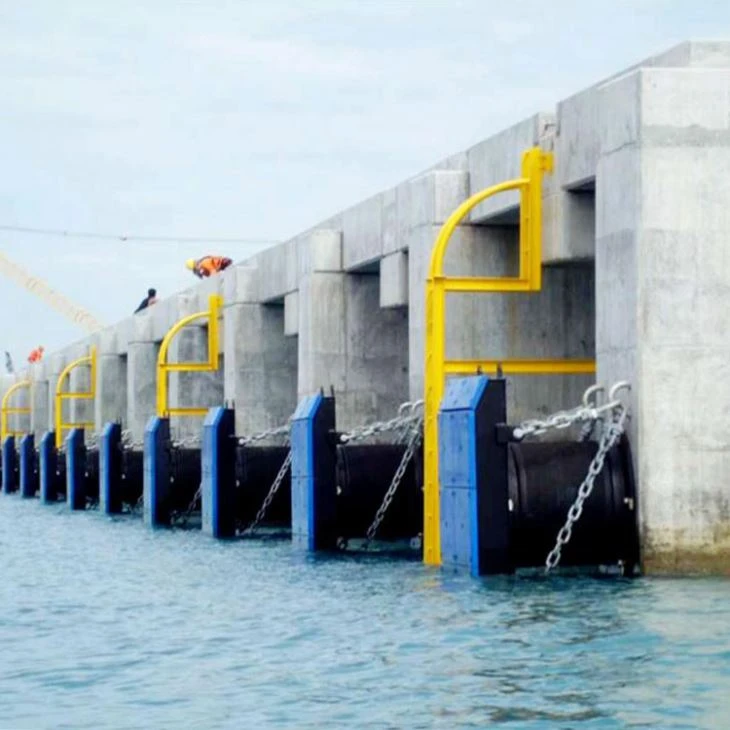

Super Cell Fender is improved over the ordinary type. It is the most commonly used fender in the world. The circular mounting base of the super cell fender makes it an extremely stable fender type.

انکوائری بھیجنے

چیٹ اب

مصنوعات کا تعارف

Super Cell Fender has high absorption energy per unit weight. Also among all types of compressed fenders, it has the lowest compression performance change. Our super cell fenders are available in a wild range of sizes from 400H to 3000H.

In the front of the super cell fender system, there will always be equipped with frontal frame. The frontal frame includes the steel panel and the UHMW-PE Facing Pad. It greatly reduces the face pressure on ship panel and the friction coefficient.

Specifications

SUPER CELL RUBBER FENDERS
Fender size	H	ØW	ØB	D	nxd	Bolt size	Weight
GCK400H	400	650	550	25	4x30	M22	78
GCK500H	500	650	550	25	4x32	M24	110
GCK630H	630	840	700	25	4x39	M30	230
GCK800H	800	1050	900	30	6x40	M33	410
GCK1000H	1000	1300	1100	35	6x47	M39	790
GCK1150H	1150	1500	1300	37	6x50	M42	1200
GCK1250H	1250	1650	1450	40	6x53	M45	1500
GCK1450H	1450	1850	1650	42	6x61	M52	2300
GCK1600H	1600	2000	1800	45	8x61	M52	3000
GCK1700H	1700	2100	1900	50	8x66	M56	3600
GCK2000H	2000	2200	2000	50	8x74	M64	5200
GCK2250H	2250	2550	2300	57	10x74	M64	7400
GCK2500H	2500	2950	2700	70	10x74	M64	10500
GCK3000H	3000	3350	3150	75	12x90	M76	18500
units: mm;kg/m

Drawing

super cell rubber fender

Features

1. Low reaction force; high capability of energy absorption.

2. High force absorption and long service life.

3. Efficient load distribution.

4. The rated compression reaches 55 percent and the E/R is 15 percent higher than E/R of common cell fenders.

5. We provide two types front panel, closed and open. Closed panel has longer service life and better anti-corrosion than open panel. It could be designed as per client's requirements.
